Radio Frequencies
Apr 12, 2020
Week Two Assignment / Look up the frequencies in a geographic location of your choice.
I decided to look up the radio frequencies around Waikiki Beach (HI, 96815) that I went to during the Winter recess. It turns out that there’s not many different frequencies in Honolulu County so that I had to look at the Education section in the result. More specifically, different campuses of University of Hawaii. However, another problem occurred that licenses of frequencies in both Honolulu Community College (WOFH280) and Kapiolani Community College (WQVC487) are not well documented in the system and I failed to retrieve the information for them. At last, I found ones for the rest three campuses:
| Frequency | License | Type | Tone | Alpha Tag | Description | |
|---|---|---|---|---|---|---|
| Leeward Community College | 453.62500 | KNEK518 | RM | LCC Security | Leeward Community College - Security Operations [Encrypted] | |
| Manoa | 858.36250 | WNUR273 | RM | 001 NAC | DIGI RPT | Security |
| 858.36250 | WNUR273 | RM | 051 DPL | UH Parking | Auxiliary Services Parking | |
| West Oahu | 464.07500 | WQUE255 | RM | UHWO Primary | UHWO Primary Operations | |
| 464.47500 | WQUE255 | M | UHWO Ops 1 | UHWO Ops 1 |
Licenses #
All the licenses are issued by the licensee HAWAII, STATE OF and are all active now.

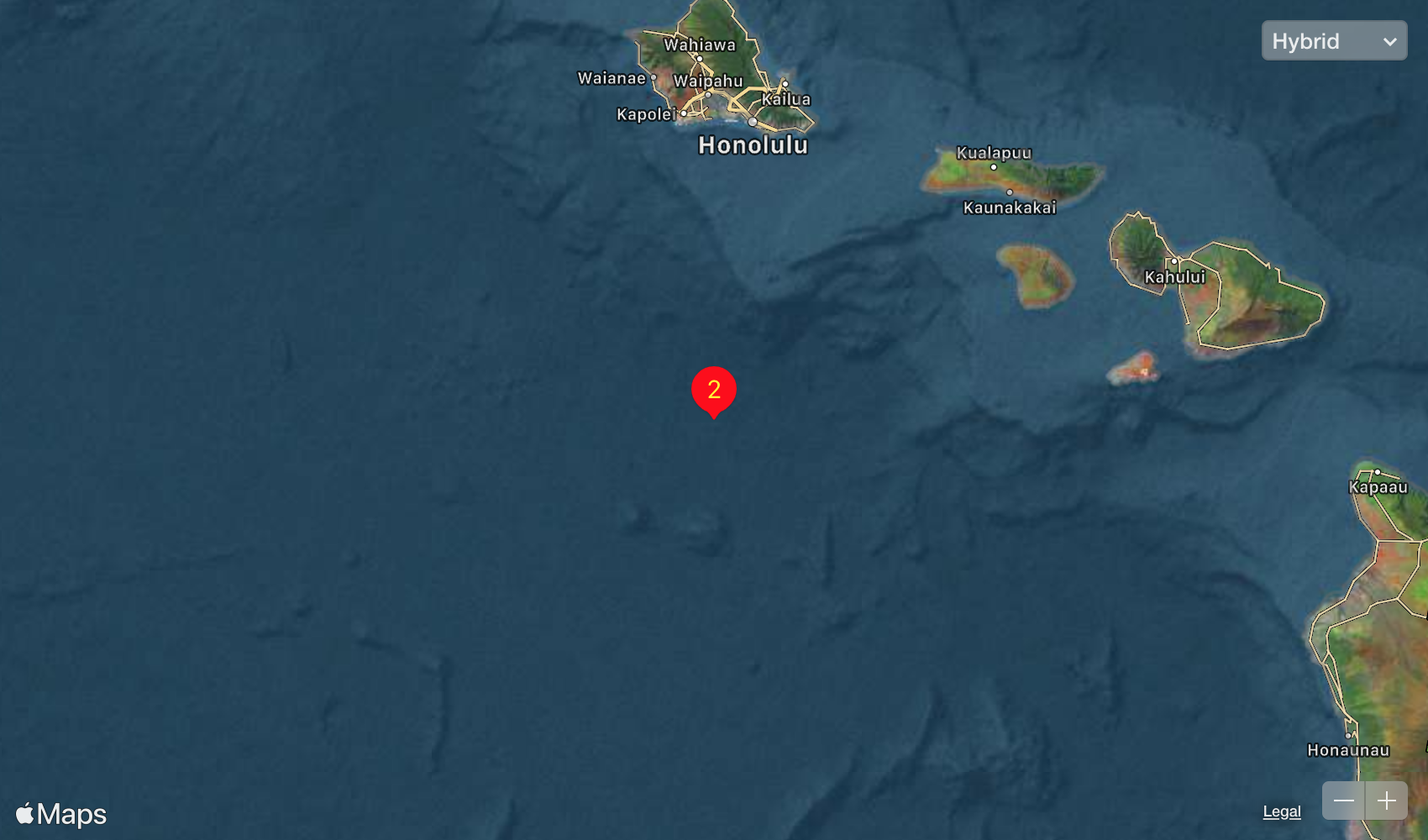

- FCC Callsign KNEK518
Radio service: PW: Public Safety Pool, Conventional. The license has 2 towers in total.

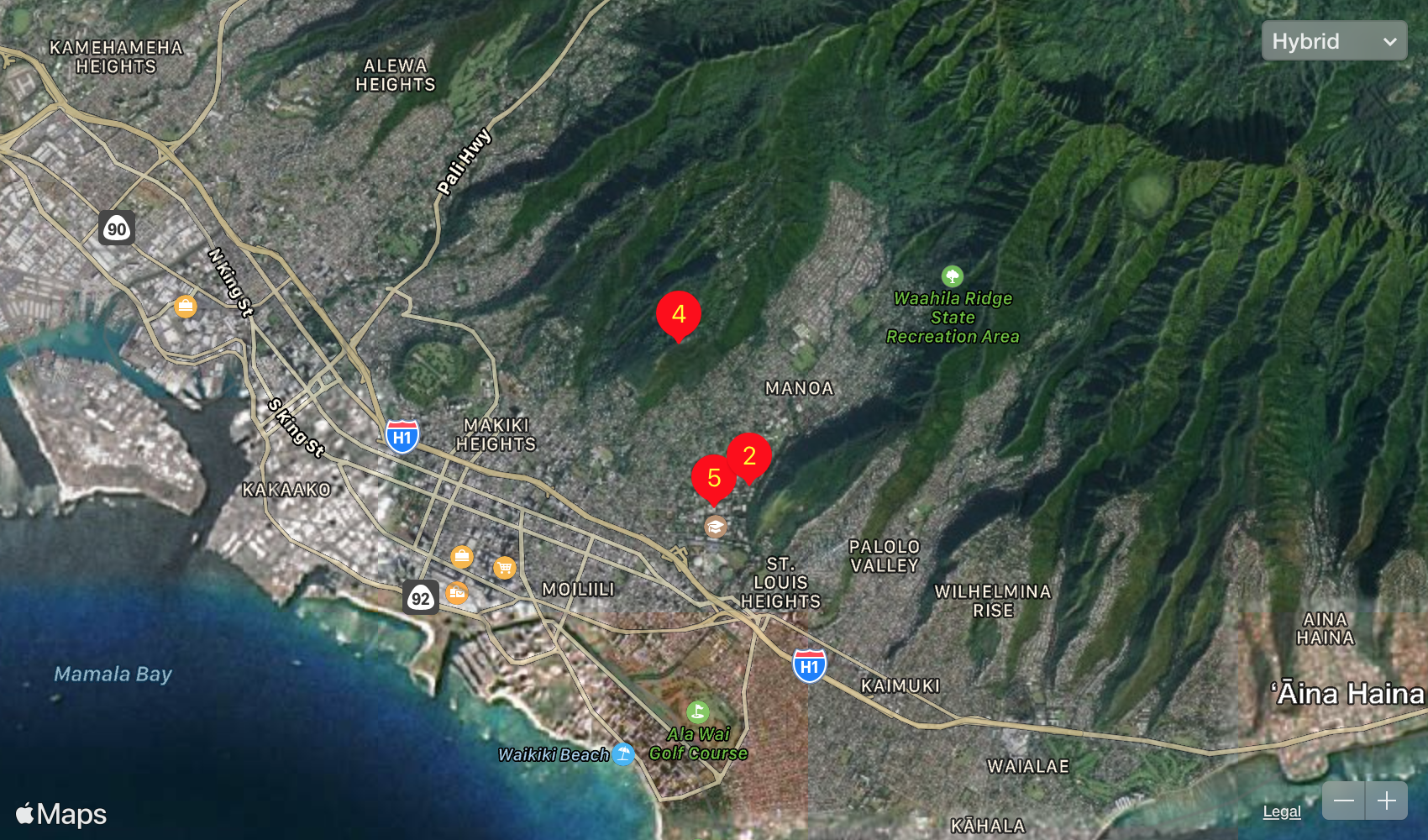

- FCC Callsign WNUR273
Radio service: GE: Public Safety/Spec Emerg and Public Safety Ntl Plan, 806-817/851. The service has 8 towers in total. A note is attached in the document that this license is for government entity to provide communication for public safety.

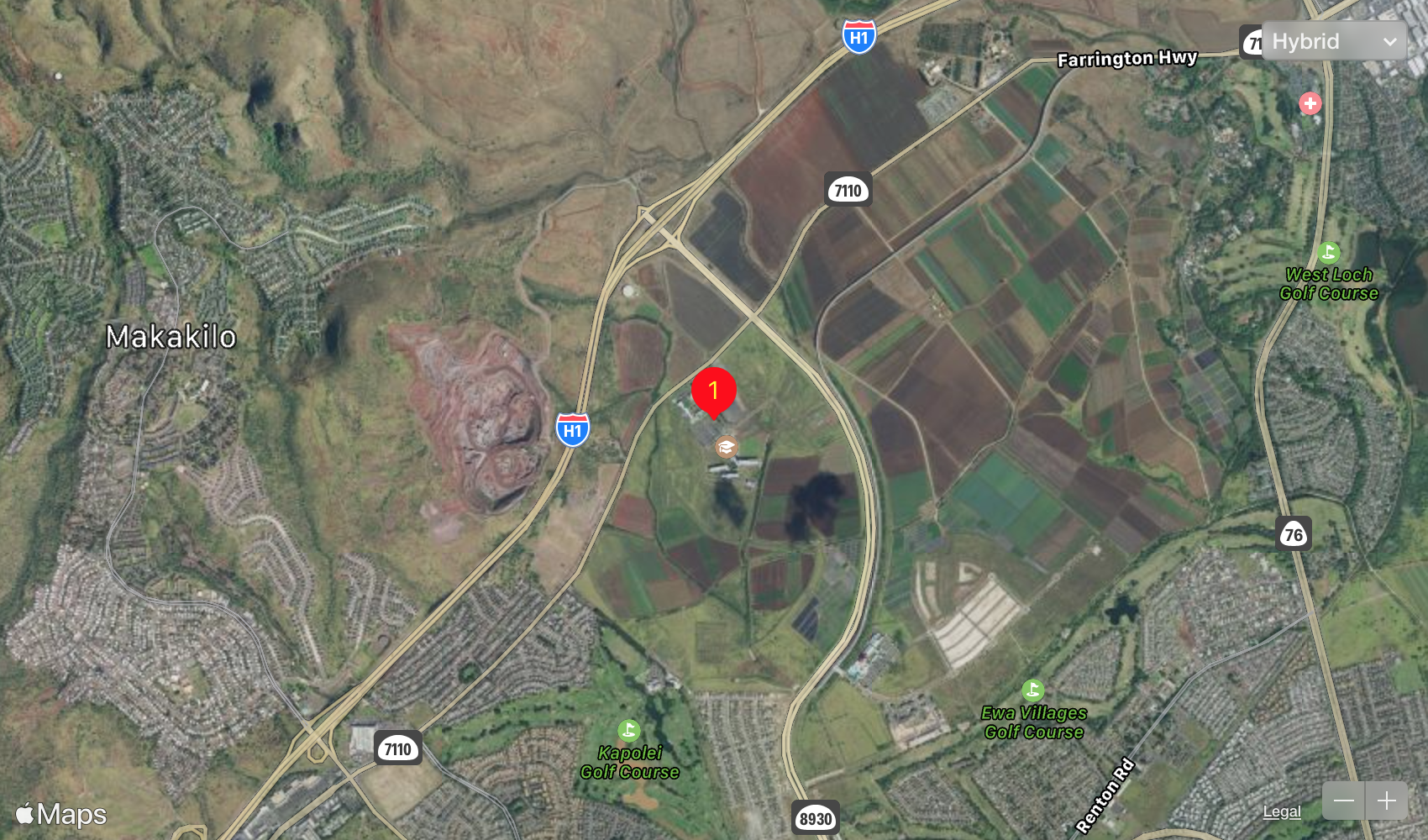

- FCC Callsign WQUE255
Radio service: IG: Industrial/Business Pool, Conventional. The service has 2 towers in total. A note is attached in the document that this license is for the university to coordinate their activities.
